Isedio

ArmourJoint

Heavy duty arris protection, Easy to install, Superior load transfer

Isedio ArmourJoint  provides heavy-duty reinforcement to slab panel edges by way of two solid, high specification, cold drawn steel sections each nominally 10mm thick x 40mm deep.

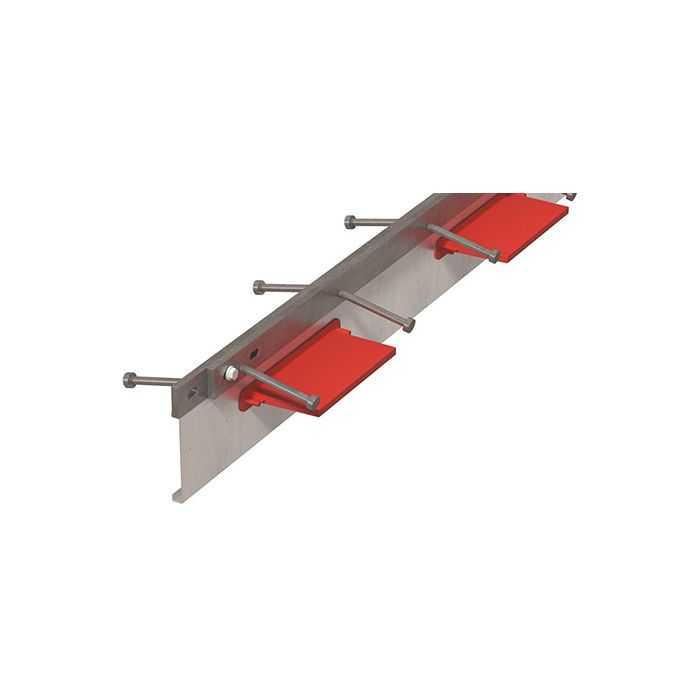

main product photo
  • Isedio ArmourJoint is a leave-in-place formwork, load transfer and edge protection joint system suitable for heavy duty industrial concrete floors.The joint system comprises two top strips, a divider plate, load transfer plate dowels and sleeves.
  • The divider plate height fits the slab depth and, to ensure the plate dowel is always located at the mid-height of the slab, is manufactured to order. The joint is designed such that, once cast, the two slab panels either side of the joint begin to shrink independently.
  • The dowel bridges the joint and is embedded in both slab panels. Formwork for casting a concrete slab is achieved by the vertical divider plates, which supports the top strip edge protection and load transfer plate dowels. Slab arris protection is provided by way of cold drawn steel top strips with shear studs that anchor the top strips in the concrete.
Click here for more information.
