Hear from Our Experts: Masonry Support Systems

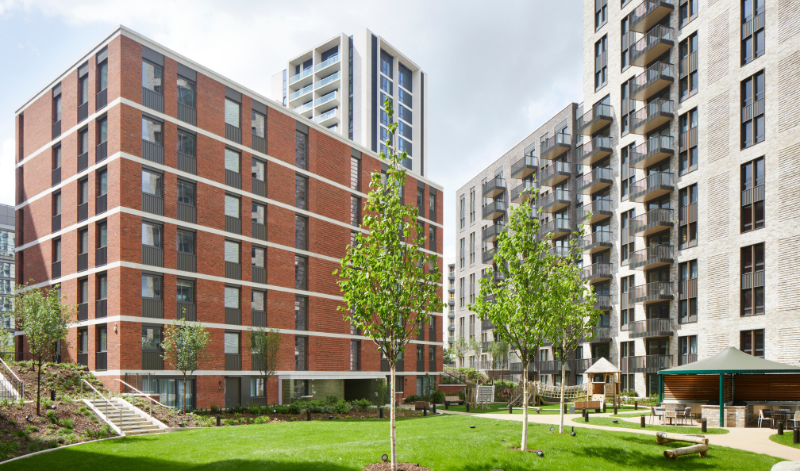

Structures with brick or stone cladding will usually necessitate the use of a stainless steel support system for the masonry. Hear from our experts as they delve deeper into our Ancon Masonry Support Systems.

Read a snippet from Jeff and Jonathan’s interview:

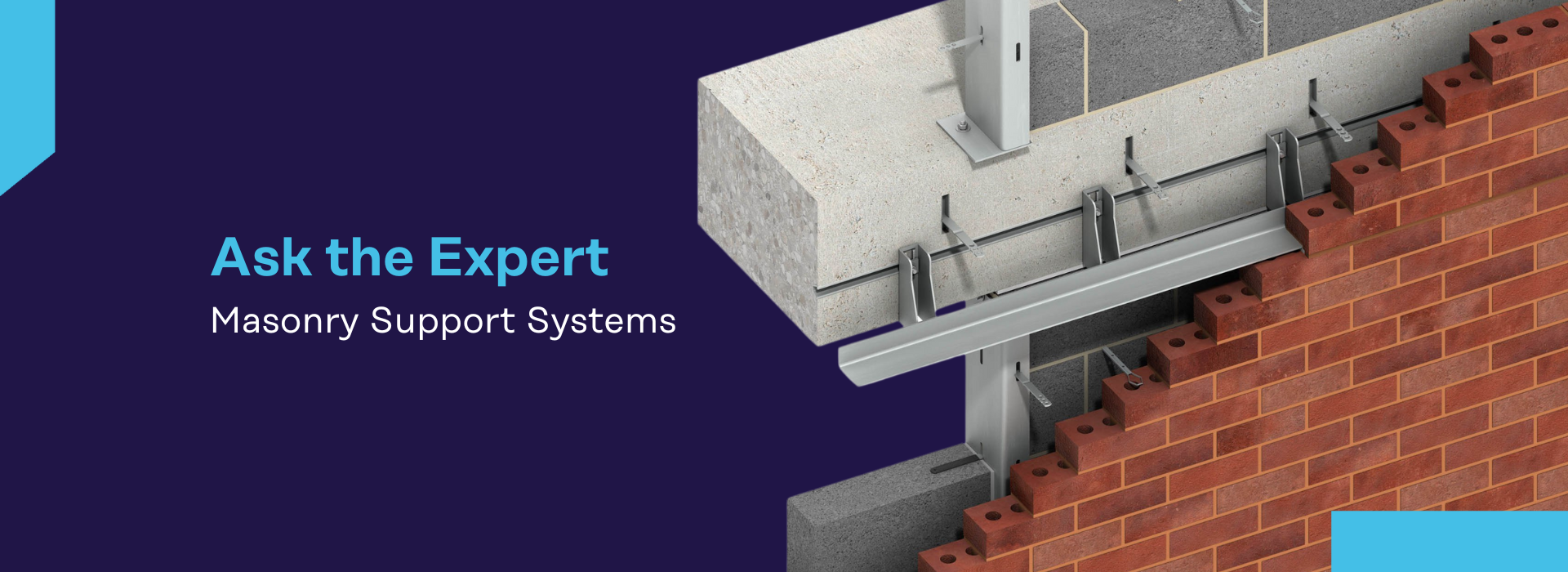

Masonry support systems are available in various configurations to provide loadbearing support for external masonry facades at horizontal movement joints (HMJs). They are also used above large openings, ribbon windows or at undercrofts. Ancon MDC systems are “bespoke as standard” and enable architects to be creative in their design choices, rather than being limited by standardised options. The system comprises a continuous shelf angle with brackets welded to the rear which span the cavity and fix to the structure. The bracket spacing and geometry varies depending on the cavity size, support level, load to be carried and type of structure. Ancon CFA systems are generally used for smaller cavities but are less versatile in terms of achievable geometries due to the lack of bracket.

Systems are fixed to concrete using Ancon Cast-in Channels or post-fixed anchors. Cast-in channels are recommended (where suitable) to ensure maximum adjustment and to minimise on-site drilling operations. At external corners, post-fixed anchors are sometimes used where channels are not able to carry the concentrated load.

When fixing to steelwork, isolated set screws are used where access to the rear is available (e.g. UB sections). When no rear access is available (e.g. RHS sections) Ancon Steelgrip bolts are used.

Find out more in the full article as Jeff and Jonathan continue to discuss masonry support, including design considerations, building tolerances and cold bridging.

To read the full article, click here.
