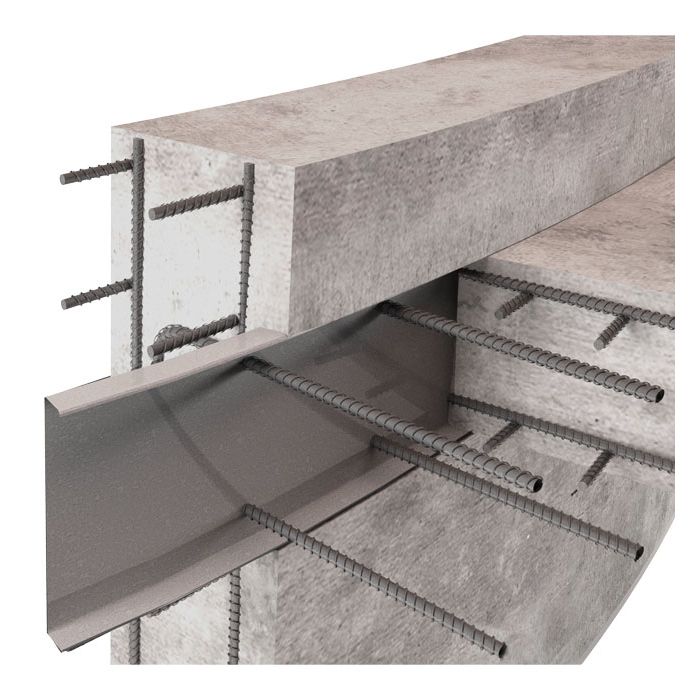

The MB Keyway Splice Box system is a safe and cost effective reinforcement method that also provides time and labor savings in many applications. The system is custom made to meet each engineer’s reinforcement detail, eliminating unnecessary labor on site.
The Keyway Splice Box system consists of unique, high yield reinforcing steel, housed in a galvanized steel carrier unit. The unit ends are sealed to prevent leakage. The reinforcement used is available in #4, #5 or #6 and is equal to ASTM A615 Grade 60 and meets ACI 318-11. The system is assembled in a controlled factory environment in order to provide the quality demanded from a harsh construction environment.
The units are used on site by nailing to the formwork or wire tied to the main reinforcement, prior to a concrete pour. After concrete is poured and the formwork is removed the lid is easily removed to expose ready to use lap splice bars. The bars are bent out of the case to provide an easy lap splice to the main reinforcing steel and subsequent concrete pours.
The case design offers an efficient key and requires no further joint preparation. The dovetail shaped casing ensures the product remains embedded in the structure when removing the formwork. The case remains in the joint and is filled with concrete on the subsequent concrete pour.
