MB Rapid Lift RL-25 Tech Anchor

2-Ton and 4-Ton

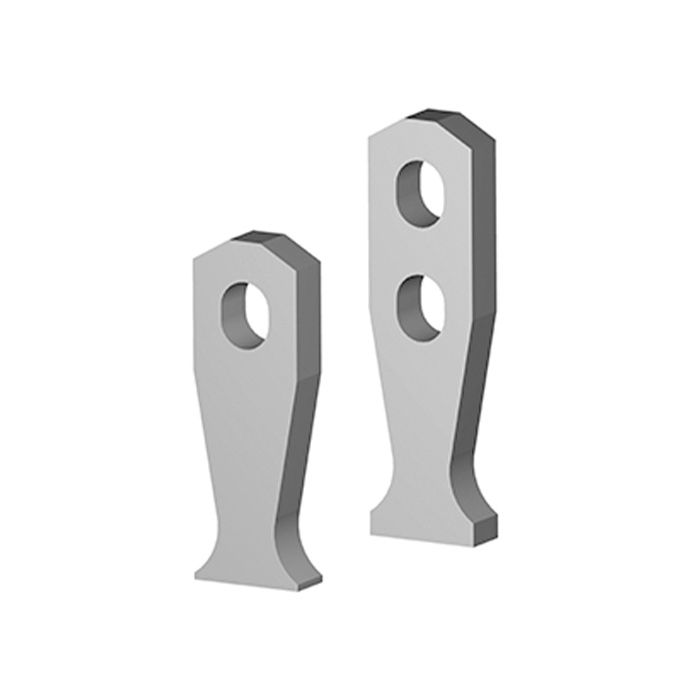

The RL-25 Tech Anchor has been developed with a unique foot design to increase tension capacity without adding extra reinforcement. Longer sizes of the anchor are supplied with a secondary hole to accommodate the addition of a tension bar for use when required. The Tech Anchor is available in the sizes shown in the table and in plain or hot dip galvanize finish.

NOTE: The tech anchor has allowable face shear loads that are equal to or greater than the face tension loads for anchors located in a panel or concrete unit at a distance of 3B+A from the edge.
